Machine control

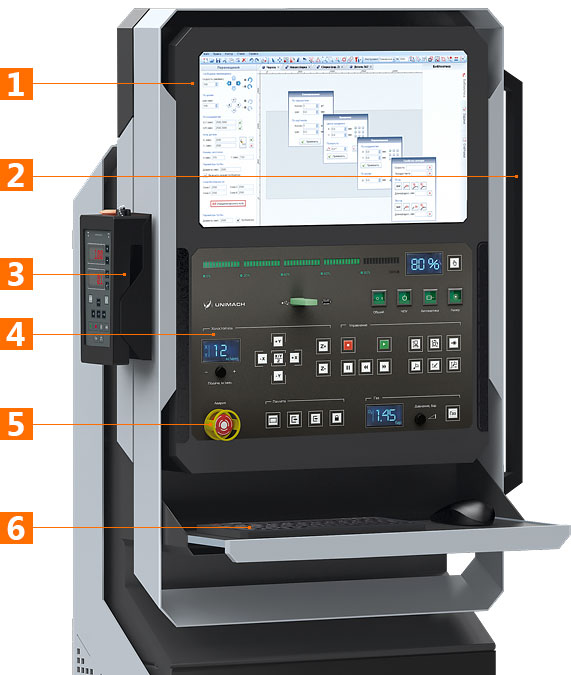

1. 1. LCD monitor
   Industrial 21" LCD monitor MV-2105.
2. 2. Moving handle
   Enables an Operator to move the console easily along the cabinet protection
3. 3. Wireless remote control
   Wireless remote control allows an Operator to carry out the most common operations from any place

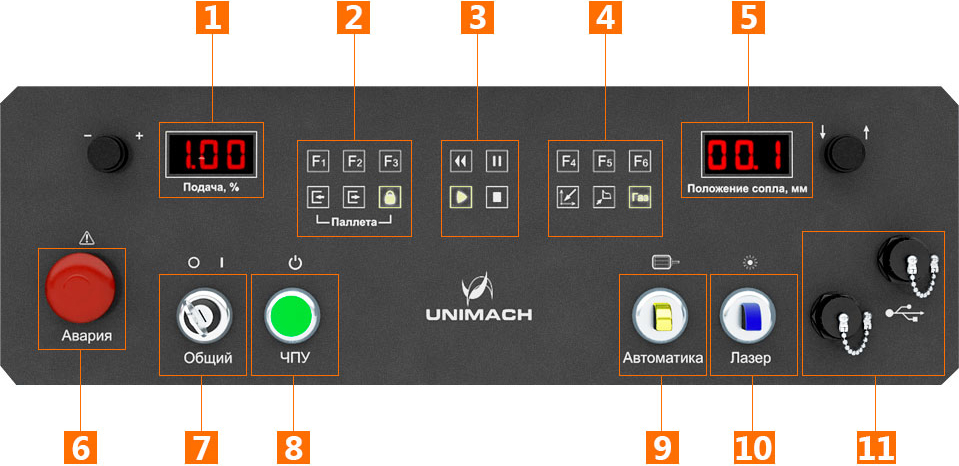

4. 4. Main controls
   Main controls are located on the front panel of the control console to provide additional comfort
5. 5. Emergency outage button
   Emergency outage button (shutdown).
6. 6. Keyboard
   Keyboard with a mouse create conventional and comfortable working atmosphere.

1. 1. Wireless connection
   Antenna to provide wireless connection with the remote control.
2. 2. LCD monitor
   Industrial 21" LCD monitor MV-2105.
3. 3. UniCut Software
   Simple and user-friendly software UniCut.
4. 4. All controls are within reach
   Most frequently used controls are located on the front panel of the control console which makes it easier for an Operator to organize working process.
5. 5. Secure control system
   The console also protects the cutting machine from unauthorized power on / off switching.
6. 6. Pull-out keyboard
   Keyboard with a mouse create conventional and comfortable working atmosphere.
7. 7. Storage drawers
   To provide additional comfort the console has special drawers to store consumables or tools, and a holder for papers.
8. 8. Barcode scanner Unimach Cordless Scanner
   Quick loading of cutting programs simplifies operation and is a great help for paper documentation.
9. 9. Integration
   LAN port to integrate a machine to general manufacturing system is located on the back panel.

Wireless remote control allows an Operator to do the most common operations from any place: start and stop, back travel along the contour, increasing / decreasing the focus length, upload speed change, machine and workpiece zero point. Operating distance — 10m. Time of autonomous operation: 96 hours. Battery charge is carried out from the USB.

Control panel allows for pallet changing in manual mode, start and stop operation in automatic mode. The panel is fastened on the side of the control console and installed in duplicate on the shuttle table.

Machine’s electronic modules are integrated in the reliable digital jam-resistant network UniNET. CNC sends a signal to the connected peripheral equipment and controls its status.

UniNET lets an Operator control all peripheral equipment using united software of the control console, as well as carry out remote diagnostics of the system status. Auxiliary devices are connected directly to the network and do not require additional input / output ports on the CNC ensuring high scalability of the System.

Bluetooth barcode Unimach Scanner increases speed and efficiency of operator’s work.

Quick loading of cutting programs simplifies operation and is a great help for paper documentation.

An Operator receives the printed task with barcodes, scans the barcodes and machine’s CNC automatically downloads proper cutting programs.

Therefore, an Operator simply presses the scanner’s button and do not waste time searching necessary files. This solution also excludes the human factor and reduces the possibility of choosing the wrong program.

The scanner is made of ABS, withstands multiple drops from 1.2 m height onto the concrete; IP rating is IP30, delivered with free software ScanMaster.
